Air Norton S

DP180
The Air Norton S is the Strat replacement version of the full-size Air Norton. It’s warm sounding, very well balanced, and has the same unique tonal characteristics as the original. The original Air Norton wasn’t designed for a specific position or type of guitar, but it has become most popular in the neck position of trem-equipped guitars for progressive music. The S version is also a very good bridge pickup for all types of rock. Its combination of medium output and harmonic bite are very effective for single-note soloing as well as chords.

The DiMarzio ISCV2 Evolution Single Coil Pickup is specifically designed for use with DiMarzio Evolution models in a wiring configuration made popular by Steve Vai.

When the 5-way switch is in the 1 or 5 position, you hear the neck or bridge humbucker. When played in the 2 or 4 position, the middle single-coil combines in parallel with one coil of either humbucker and produces a distinctive tone with hum cancellation. The middle (3) position gives a true single coil sound which is not hum canceling and is not like an Evolution humbucker.

PAF Pro

DP151
The PAF Pro was created when chops-intensive playing was first starting to happen, and high-gain amps and rack systems were becoming popular. A pickup was needed that combined a lot of presence and “cut" with an open-sounding PAF vibe. The transparency of its sound lets the PAF Pro slice through heavy processing, where darker-sounding pickups get lost in the mud of the effects chain. Low notes have both snap and chunk, and there is a spike in the mid-range that gives the pickup a subtle “aw" vowel sound, like a wah-wah pedal stopped in the middle. Treble response is tweaked to produce highs that stand out without getting brittle. The PAF Pro makes an outstanding neck pickup in almost any guitar, and it’s an exceptional bridge pickup when high output isn’t required.

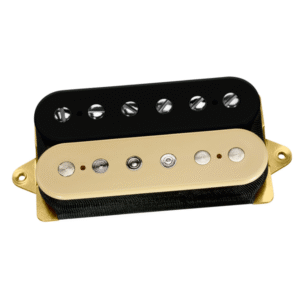

Super Distortion

Part Number: DP100 CR

This pickup started a sound revolution. Replacement pickups simply didn’t exist before the invention of the Super Distortion in the early Seventies. The Super Distortion (and its original 3-conductor version, the Dual Sound was the first pickup specifically designed to kick a tube amp into total overdrive, and is still the standard by which all other high-output pickups are measured. The Super Distortion has a perfect blend of power and tone: both single-notes and chords jump out of the amp and fill the room (or the track) with a wall of sound. The balance of tones is classic — thick, boosted mids, big lows and fat highs. This is the sound you’ve heard for over three decades on platinum records, from players as varied as Ace Frehley, Al Di Meola, and Paul Gilbert. It’s also versatile: 4-conductor wiring allows instant access to Strat-like split and series-parallel modes. Discover what thousands of great players know: the Super Distortion is the best all ’round high-power pickup ever made.

Specs

Wiring: 4 Conductor
Magnet: Ceramic
Output mV: 425
DC Resistance: 13.68 Kohm
Year of Introduction: 1972
